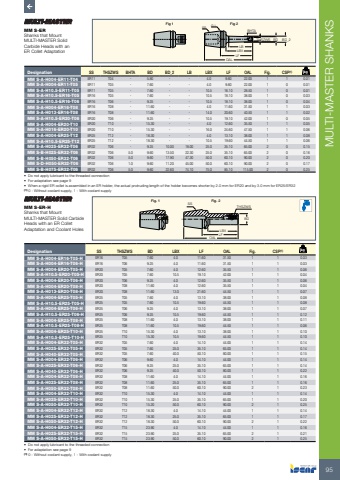

MULTI-MASTER SHANKS95THSZWS BD BD_2OALLBXFig 1 Fig 2LFLBBHTASS G.L.Designation SS THSZWS BHTA BD BD_2 LB LBX LF OAL Fig. CSP(1) kgMM S-A-H004-ER11-T04 ER11 T04 - 5.80 - - 4.0 9.60 22.00 1 1 0.01MM S-A-H004-ER11-T05 ER11 T05 - 7.60 - - 4.0 9.60 22.00 1 0 0.01MM S-A-H10.5-ER11-T05 ER11 T05 - 7.60 - - 10.5 16.10 28.50 1 0 0.01MM S-A-H10.5-ER16-T05 ER16 T05 - 7.60 - - 10.5 18.10 38.00 1 0 0.03MM S-A-H10.5-ER16-T06 ER16 T06 - 9.25 - - 10.5 18.10 38.00 1 0 0.04MM S-A-H004-ER16-T08 ER16 T08 - 11.60 - - 4.0 11.60 31.50 1 1 0.03MM S-A-H013-ER16-T08 ER16 T08 - 11.60 - - 14.0 20.60 40.50 1 1 0.02MM S-A-H10.5-ER20-T06 ER20 T06 - 9.25 - - 10.5 19.10 42.00 1 0 0.05MM S-A-H004-ER20-T10 ER20 T10 - 15.30 - - 4.0 12.60 35.50 1 1 0.05MM S-A-H016-ER20-T10 ER20 T10 - 15.30 - - 16.0 24.60 47.50 1 1 0.06MM S-A-H004-ER25-T12 ER25 T12 - 18.30 - - 4.0 13.10 38.00 1 1 0.08MM S-A-H10.5-ER25-T12 ER25 T12 - 18.30 - - 10.5 19.60 44.50 1 1 0.06MM S-A-H025-ER32-T06 ER32 T06 - 9.25 10.00 18.00 25.0 35.10 65.00 2 0 0.15MM S-B-H025-ER32-T06 ER32 T06 5.0 9.60 13.50 22.30 25.0 35.10 65.00 2 0 0.16MM S-B-H050-ER32-T06 ER32 T06 5.0 9.60 17.90 47.30 50.0 60.10 90.00 2 0 0.20MM S-D-H050-ER32-T06 ER32 T06 1.0 9.60 11.20 45.00 50.0 60.10 90.00 2 0 0.17MM S-B-H075-ER32-T06 ER32 T06 5.0 9.60 22.60 74.10 75.0 85.10 115.00 2 0 0.25%u2022 Do not apply lubricant to the threaded connection %u2022 For adaptation see page 9 %u2022 When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32(1) 0 - Without coolant supply, 1 - With coolant supply MM S-ERShanks that Mount MULTI-MASTER Solid Carbide Heads with an ER Collet AdaptationBDSSFig. 1 Fig. 2OALLBXLFTHSZWSDesignation SS THSZWS BD LBX LF OAL Fig. CSP(1) kgMM S-A-H004-ER16-T05-H ER16 T05 7.60 4.0 11.60 31.50 1 1 0.03MM S-A-H004-ER16-T06-H ER16 T06 9.25 4.0 11.60 31.50 1 1 0.03MM S-A-H004-ER20-T05-H ER20 T05 7.60 4.0 12.60 35.50 1 1 0.06MM S-A-H10.5-ER20-T05-H ER20 T05 7.60 10.5 19.10 42.00 1 1 0.04MM S-A-H004-ER20-T06-H ER20 T06 9.25 4.0 12.60 35.50 1 1 0.06MM S-A-H004-ER20-T08-H ER20 T08 11.60 4.0 12.60 35.50 1 1 0.04MM S-A-H013-ER20-T08-H ER20 T08 11.60 13.0 21.60 44.50 1 1 0.07MM S-A-H004-ER25-T05-H ER25 T05 7.60 4.0 13.10 38.00 1 1 0.08MM S-A-H10.5-ER25-T05-H ER25 T05 7.60 10.5 19.60 44.50 1 1 0.08MM S-A-H004-ER25-T06-H ER25 T06 9.25 4.0 13.10 38.00 1 1 0.07MM S-A-H10.5-ER25-T06-H ER25 T06 9.25 10.5 19.60 44.50 1 1 0.12MM S-A-H004-ER25-T08-H ER25 T08 11.60 4.0 13.10 38.00 1 1 0.11MM S-A-H10.5-ER25-T08-H ER25 T08 11.60 10.5 19.60 44.50 1 1 0.06MM S-A-H004-ER25-T10-H ER25 T10 15.30 4.0 13.10 38.00 1 1 0.10MM S-A-H10.5-ER25-T10-H ER25 T10 15.30 10.5 19.60 44.50 1 1 0.10MM S-A-H004-ER32-T05-H ER32 T05 7.60 4.0 14.10 44.00 1 1 0.14MM S-A-H025-ER32-T05-H ER32 T05 7.60 25.0 35.10 65.00 1 1 0.14MM S-A-H040-ER32-T05-H ER32 T05 7.60 40.0 50.10 80.00 1 1 0.15MM S-A-H004-ER32-T06-H ER32 T06 9.60 4.0 14.10 44.00 1 1 0.14MM S-A-H025-ER32-T06-H ER32 T06 9.25 25.0 35.10 65.00 1 1 0.14MM S-A-H040-ER32-T06-H ER32 T06 9.25 40.0 50.10 80.00 1 1 0.22MM S-A-H004-ER32-T08-H ER32 T08 11.60 4.0 14.10 44.00 1 1 0.16MM S-A-H025-ER32-T08-H ER32 T08 11.60 25.0 35.10 65.00 1 1 0.16MM S-A-H050-ER32-T08-H ER32 T08 11.60 50.0 60.10 90.00 2 1 0.23MM S-A-H004-ER32-T10-H ER32 T10 15.30 4.0 14.10 44.00 1 1 0.14MM S-A-H025-ER32-T10-H ER32 T10 15.30 25.0 35.10 65.00 1 1 0.20MM S-A-H050-ER32-T10-H ER32 T10 15.20 50.0 60.10 90.00 2 1 0.25MM S-A-H004-ER32-T12-H ER32 T12 18.30 4.0 14.10 44.00 1 1 0.14MM S-A-H025-ER32-T12-H ER32 T12 18.30 25.0 35.10 65.00 1 1 0.17MM S-A-H050-ER32-T12-H ER32 T12 18.30 50.0 60.10 90.00 2 1 0.22MM S-A-H004-ER32-T15-H ER32 T15 23.90 4.0 14.10 44.00 1 1 0.16MM S-A-H025-ER32-T15-H ER32 T15 23.90 25.0 35.10 65.00 2 1 0.21MM S-A-H050-ER32-T15-H ER32 T15 23.90 50.0 60.10 90.00 2 1 0.25%u2022 Do not apply lubricant to the threaded connection %u2022 For adaptation see page 9(1) 0 - Without coolant supply, 1 - With coolant supply MM S-ER-HShanks that Mount MULTI-MASTER Solid Carbide Heads with an ER Collet Adaptation and Coolant Holes
