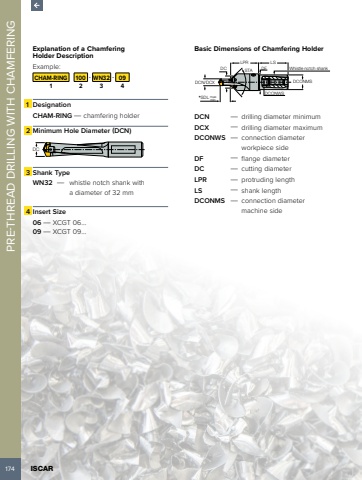

174 ISCAR PRE-THREAD DRILLING WITH CHAMFERING Explanation of a Chamfering Holder Description Example:CHAM-RING 100 - WN32 - 091 2 3 41 DesignationCHAM-RING %u2014 chamfering holder 2 Minimum Hole Diameter (DCN)DC 3 Shank TypeWN32 %u2014 whistle notch shank with a diameter of 32 mm4 Insert Size06 %u2014 XCGT 06%u202609 %u2014 XCGT 09%u2026Basic Dimensions of Chamfering HolderLPR LSDFDCONWSDCONMSSTA DCDCN/DCXWhistle notch shank*SDL max minDCN %u2014 drilling diameter minimumDCX %u2014 drilling diameter maximumDCONWS %u2014 connection diameter workpiece sideDF %u2014 flange diameterDC %u2014 cutting diameterLPR %u2014 protruding lengthLS %u2014 shank lengthDCONMS %u2014 connection diameter machine side
