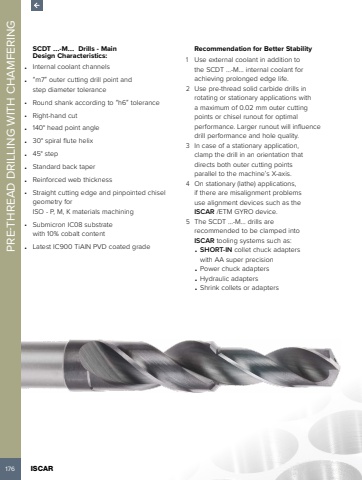

176 ISCAR PRE-THREAD DRILLING WITH CHAMFERING SCDT %u2026-M%u2026 Drills - MainDesign Characteristics:%u2022 Internal coolant channels%u2022 %u201cm7%u201d outer cutting drill point and step diameter tolerance%u2022 Round shank according to %u201ch6%u201d tolerance%u2022 Right-hand cut%u2022 140%u00b0 head point angle%u2022 30%u00b0 spiral flute helix%u2022 45%u00b0 step%u2022 Standard back taper%u2022 Reinforced web thickness%u2022 Straight cutting edge and pinpointed chisel geometry for ISO - P, M, K materials machining%u2022 Submicron IC08 substrate with 10% cobalt content%u2022 Latest IC900 TiAlN PVD coated gradeRecommendation for Better Stability1 Use external coolant in addition to the SCDT %u2026-M%u2026 internal coolant for achieving prolonged edge life.2 Use pre-thread solid carbide drills in rotating or stationary applications with a maximum of 0.02 mm outer cutting points or chisel runout for optimal performance. Larger runout will influence drill performance and hole quality.3 In case of a stationary application, clamp the drill in an orientation that directs both outer cutting points parallel to the machine%u2019s X-axis.4 On stationary (lathe) applications, if there are misalignment problems use alignment devices such as the ISCAR /ETM GYRO device. 5 The SCDT %u2026-M%u2026 drills are recommended to be clamped into ISCAR tooling systems such as:%u2022 SHORT-IN collet chuck adapters with AA super precision%u2022 Power chuck adapters%u2022 Hydraulic adapters%u2022 Shrink collets or adapters
