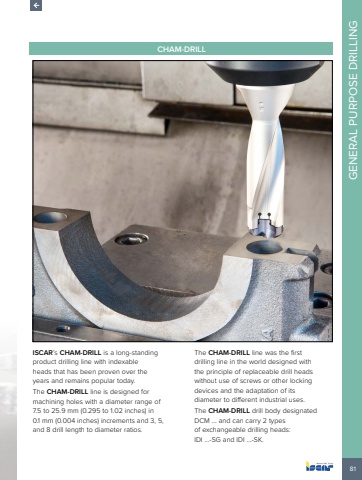

81GENERAL PURPOSE DRILLINGCHAM-DRILLISCAR%u2019s CHAM-DRILL is a long-standing product drilling line with indexable heads that has been proven over the years and remains popular today. The CHAM-DRILL line is designed for machining holes with a diameter range of 7.5 to 25.9 mm (0.295 to 1.02 inches) in 0.1 mm (0.004 inches) increments and 3, 5, and 8 drill length to diameter ratios.The CHAM-DRILL line was the first drilling line in the world designed with the principle of replaceable drill heads without use of screws or other locking devices and the adaptation of its diameter to different industrial uses.The CHAM-DRILL drill body designated DCM %u2026 and can carry 2 types of exchangeable drilling heads: IDI %u2026-SG and IDI %u2026-SK.
