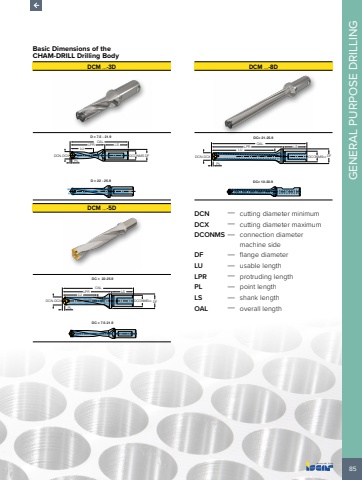

85GENERAL PURPOSE DRILLINGBasic Dimensions of theCHAM-DRILL Drilling BodyDCM %u2026-3DD = 7.5 - 21.9D = 22 - 25.9LULPR OAL LSDCN-DCX DCONMS DFPLDCM %u2026-5DDCN-DCX DCONMSh6 DFLPR LSOALLUPLDC = 7.5-21.9DC = 22-25.9DCM %u2026-8DDCN-DCX DCONMSh6 DFLUPLLPR OALDC= 10-20.9DC= 21-25.9LSDCN %u2014 cutting diameter minimumDCX %u2014 cutting diameter maximumDCONMS %u2014 connection diameter machine sideDF %u2014 flange diameterLU %u2014 usable lengthLPR %u2014 protruding lengthPL %u2014 point lengthLS %u2014 shank lengthOAL %u2014 overall length
