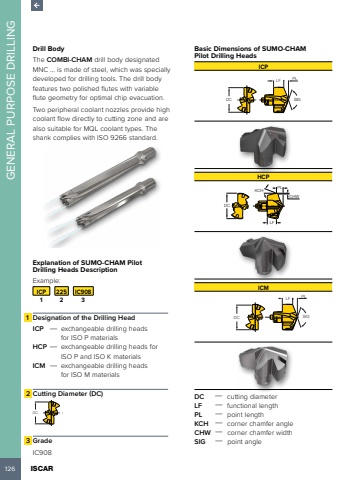

126 ISCAR GENERAL PURPOSE DRILLINGDrill BodyThe COMBI-CHAM drill body designated MNC %u2026 is made of steel, which was specially developed for drilling tools. The drill body features two polished flutes with variable flute geometry for optimal chip evacuation. Two peripheral coolant nozzles provide high coolant flow directly to cutting zone and are also suitable for MQL coolant types. The shank complies with ISO 9266 standard.Explanation of SUMO-CHAM Pilot Drilling Heads Description Example:ICP 225 IC9081 2 31 Designation of the Drilling HeadICP %u2014 exchangeable drilling heads for ISO P materialsHCP %u2014 exchangeable drilling heads for ISO P and ISO K materialsICM %u2014 exchangeable drilling heads for ISO M materials2 Cutting Diameter (DC) DC3 GradeIC908Basic Dimensions of SUMO-CHAM Pilot Drilling HeadsICPPL LFDC SIGHCPDCLFKCHCHWPLICMLF PLDC SIGDC %u2014 cutting diameterLF %u2014 functional lengthPL %u2014 point lengthKCH %u2014 corner chamfer angleCHW %u2014 corner chamfer widthSIG %u2014 point angle
