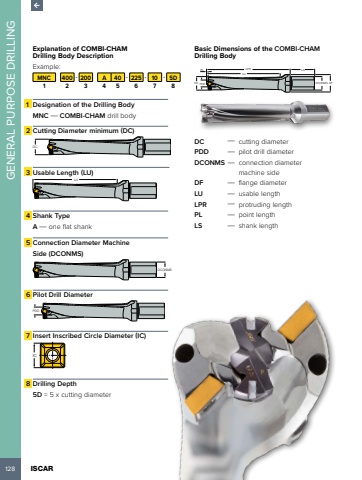

128 ISCAR GENERAL PURPOSE DRILLINGExplanation of COMBI-CHAM Drilling Body Description Example:MNC 400 - 200 A 40 - 225 - 10 - 5D1 2 3 4 5 6 7 81 Designation of the Drilling BodyMNC %u2014 COMBI-CHAM drill body2 Cutting Diameter minimum (DC)DC3 Usable Length (LU) LU4 Shank TypeA %u2014 one flat shank5 Connection Diameter Machine Side (DCONMS)DCONMS6 Pilot Drill Diameter PDD7 Insert Inscribed Circle Diameter (IC) IC8 Drilling Depth5D = 5 x cutting diameterBasic Dimensions of the COMBI-CHAMDrilling BodyDFPL LPR LSDC PDDLUDCONMSDC %u2014 cutting diameterPDD %u2014 pilot drill diameter DCONMS %u2014 connection diameter machine sideDF %u2014 flange diameterLU %u2014 usable lengthLPR %u2014 protruding lengthPL %u2014 point lengthLS %u2014 shank length
