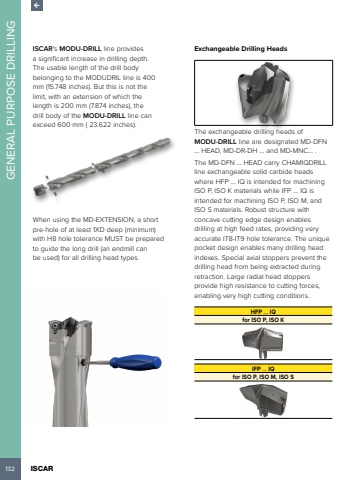

132 ISCAR GENERAL PURPOSE DRILLINGISCAR's MODU-DRILL line provides a significant increase in drilling depth. The usable length of the drill body belonging to the MODUDRIL line is 400 mm (15.748 inches). But this is not the limit, with an extension of which the length is 200 mm (7.874 inches), the drill body of the MODU-DRILL line can exceed 600 mm ( 23.622 inches). When using the MD-EXTENSION, a short pre-hole of at least 1XD deep (minimum) with H8 hole tolerance MUST be prepared to guide the long drill (an endmill can be used) for all drilling head types.Exchangeable Drilling HeadsThe exchangeable drilling heads of MODU-DRILL line are designated MD-DFN %u2026 HEAD, MD-DR-DH %u2026 and MD-MNC%u2026 .The MD-DFN %u2026 HEAD carry CHAMIQDRILL line exchangeable solid carbide heads where HFP %u2026 IQ is intended for machining ISO P, ISO K materials while IFP %u2026 IQ is intended for machining ISO P, ISO M, and ISO S materials. Robust structure with concave cutting edge design enables drilling at high feed rates, providing very accurate IT8-IT9 hole tolerance. The unique pocket design enables many drilling head indexes. Special axial stoppers prevent the drilling head from being extracted during retraction. Large radial head stoppers provide high resistance to cutting forces, enabling very high cutting conditions. HFP %u2026 IQ for ISO P, ISO KIFP %u2026 IQfor ISO P, ISO M, ISO S
