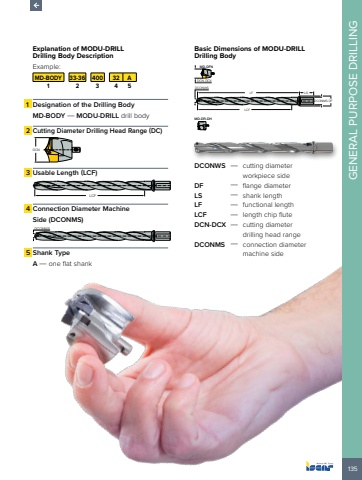

135GENERAL PURPOSE DRILLINGExplanation of MODU-DRILL Drilling Body Description Example:MD-BODY 33-36 400 32 A1 2 3 4 51 Designation of the Drilling BodyMD-BODY %u2014 MODU-DRILL drill body2 Cutting Diameter Drilling Head Range (DC) DCN3 Usable Length (LCF) LCF4 Connection Diameter Machine Side (DCONMS) DCONWS5 Shank TypeA %u2014 one flat shankBasic Dimensions of MODU-DRILL Drilling BodyDCN-DCXMD-DFNLF LSLCFDCONMS DFDCONWSMD-DR-DHDCONWS %u2014 cutting diameter workpiece sideDF %u2014 flange diameterLS %u2014 shank lengthLF %u2014 functional lengthLCF %u2014 length chip fluteDCN-DCX %u2014 cutting diameter drilling head rangeDCONMS %u2014 connection diameter machine side
