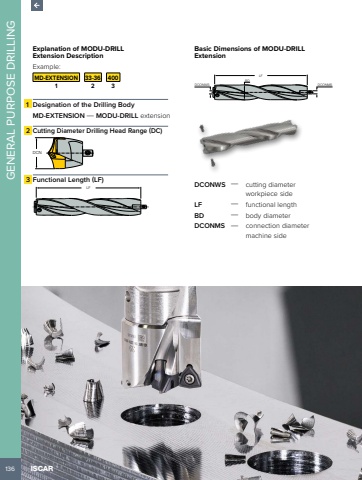

136GENERAL PURPOSE DRILLINGISCARExplanation of MODU-DRILL Extension Description Example:MD-EXTENSION 33-36 4001 2 31 Designation of the Drilling BodyMD-EXTENSION %u2014 MODU-DRILL extension2 Cutting Diameter Drilling Head Range (DC)DCN3 Functional Length (LF)LFBasic Dimensions of MODU-DRILL ExtensionLFDCONMSBDDCONWSDCONWS %u2014 cutting diameter workpiece sideLF %u2014 functional lengthBD %u2014 body diameterDCONMS %u2014 connection diameter machine side
