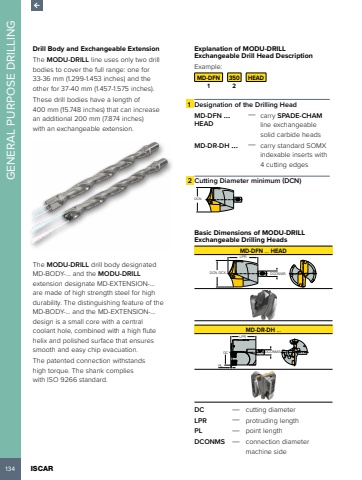

134 ISCAR GENERAL PURPOSE DRILLINGDrill Body and Exchangeable ExtensionThe MODU-DRILL line uses only two drill bodies to cover the full range: one for 33-36 mm (1.299-1.453 inches) and the other for 37-40 mm (1.457-1.575 inches). These drill bodies have a length of 400 mm (15.748 inches) that can increase an additional 200 mm (7.874 inches) with an exchangeable extension. The MODU-DRILL drill body designated MD-BODY-%u2026 and the MODU-DRILLextension designate MD-EXTENSION-%u2026are made of high strength steel for high durability. The distinguishing feature of the MD-BODY-... and the MD-EXTENSION-%u2026design is a small core with a central coolant hole, combined with a high flute helix and polished surface that ensures smooth and easy chip evacuation. The patented connection withstands high torque. The shank complies with ISO 9266 standard. Explanation of MODU-DRILL Exchangeable Drill Head Description Example:MD-DFN 350 HEAD1 21 Designation of the Drilling HeadMD-DFN %u2026HEAD%u2014 carry SPADE-CHAMline exchangeable solid carbide headsMD-DR-DH %u2026 %u2014 carry standard SOMX indexable inserts with 4 cutting edges2 Cutting Diameter minimum (DCN) DCNBasic Dimensions of MODU-DRILL Exchangeable Drilling HeadsMD-DFN %u2026 HEADDCONMSLPRDCN-DCXMD-DR-DH %u2026DCONMSLPRDCPLDC %u2014 cutting diameterLPR %u2014 protruding lengthPL %u2014 point lengthDCONMS %u2014 connection diameter machine side
