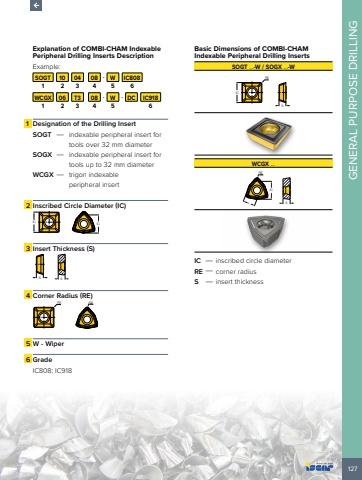

127GENERAL PURPOSE DRILLINGExplanation of COMBI-CHAM Indexable Peripheral Drilling Inserts Description Example:SOGT 10 04 08 - W IC8081 2 3 4 5 6WCGX 06 T3 08 - W - DC IC9181 2 3 4 5 61 Designation of the Drilling InsertSOGT %u2014 indexable peripheral insert for tools over 32 mm diameterSOGX %u2014 indexable peripheral insert for tools up to 32 mm diameterWCGX %u2014 trigon indexable peripheral insert 2 Inscribed Circle Diameter (IC) IC IC3 Insert Thickness (S)S S4 Corner Radius (RE) RE RE5 W - Wiper6 GradeIC808; IC918Basic Dimensions of COMBI-CHAM Indexable Peripheral Drilling Inserts SOGT %u2026-W / SOGX %u2026-WSREICWCGX %u2026ICLRESIC %u2014 inscribed circle diameterRE %u2014 corner radiusS %u2014 insert thickness
