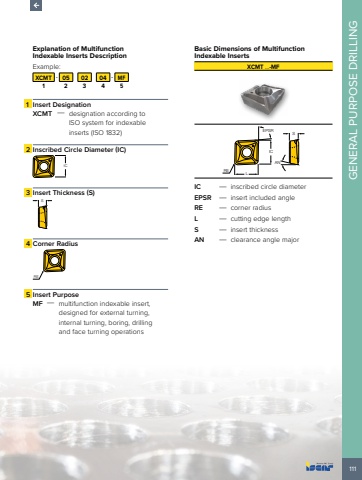

111GENERAL PURPOSE DRILLINGExplanation of Multifunction Indexable Inserts Description Example:XCMT - 05 02 04 - MF1 2 3 4 51 Insert DesignationXCMT %u2014 designation according to ISO system for indexable inserts (ISO 1832)2 Inscribed Circle Diameter (IC) IC3 Insert Thickness (S) S4 Corner Radius RE5 Insert PurposeMF %u2014 multifunction indexable insert, designed for external turning, internal turning, boring, drilling and face turning operations Basic Dimensions of Multifunction Indexable InsertsXCMT %u2026-MFEPSRL REICANSIC %u2014 inscribed circle diameterEPSR %u2014 insert included angleRE %u2014 corner radiusL %u2014 cutting edge lengthS %u2014 insert thicknessAN %u2014 clearance angle major
