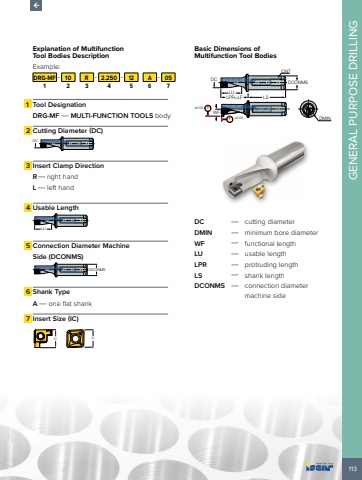

113GENERAL PURPOSE DRILLINGExplanation of Multifunction Tool Bodies Description Example:DRG-MF - 10 R - 2.250 - 12 A - 051 2 3 4 5 6 71 Tool DesignationDRG-MF %u2014 MULTI-FUNCTION TOOLS body2 Cutting Diameter (DC) DC3 Insert Clamp DirectionR%u2014 right handL %u2014 left hand4 Usable Length LU5 Connection Diameter Machine Side (DCONMS) DCONMS6 Shank TypeA %u2014 one flat shank7 Insert Size (IC)IC ICBasic Dimensions of Multifunction Tool BodiesDCWFLPR=LFLULSDCONMSDMINCNT%u00b10.05%u00b10.05DC %u2014 cutting diameterDMIN %u2014 minimum bore diameterWF %u2014 functional lengthLU %u2014 usable lengthLPR %u2014 protruding lengthLS %u2014 shank lengthDCONMS %u2014 connection diameter machine side
